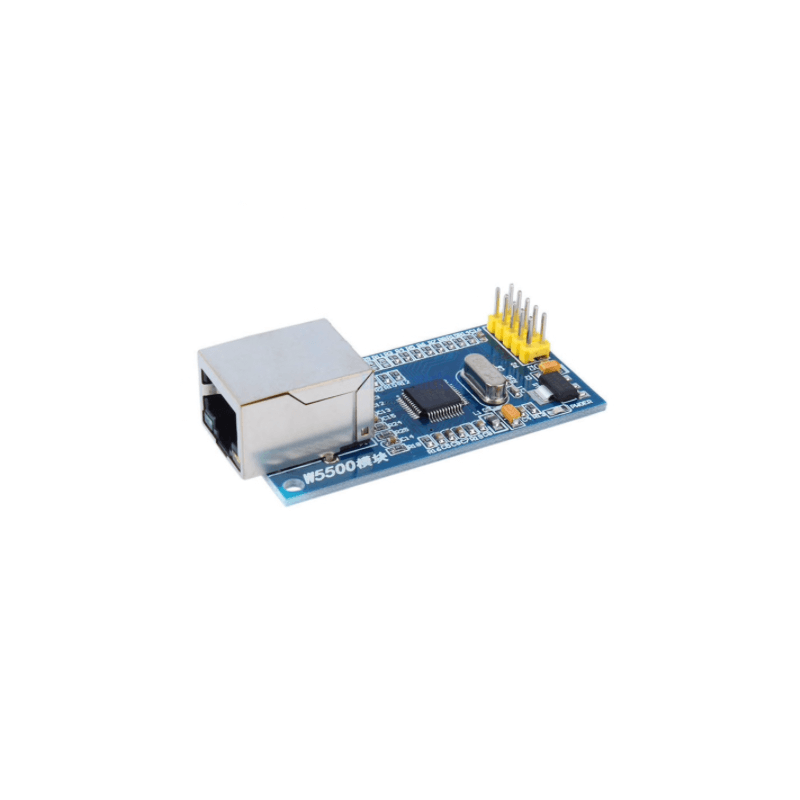

W5500 Ethernet Module


An intelligent Ethernet module with built-in TCP/IP protocols and network buffers. Compatible with Arduino & Mbed OS via third-party libraries. Future RadioShuttle support is planned.

Technical data

  • Input power 5 V or 3 V

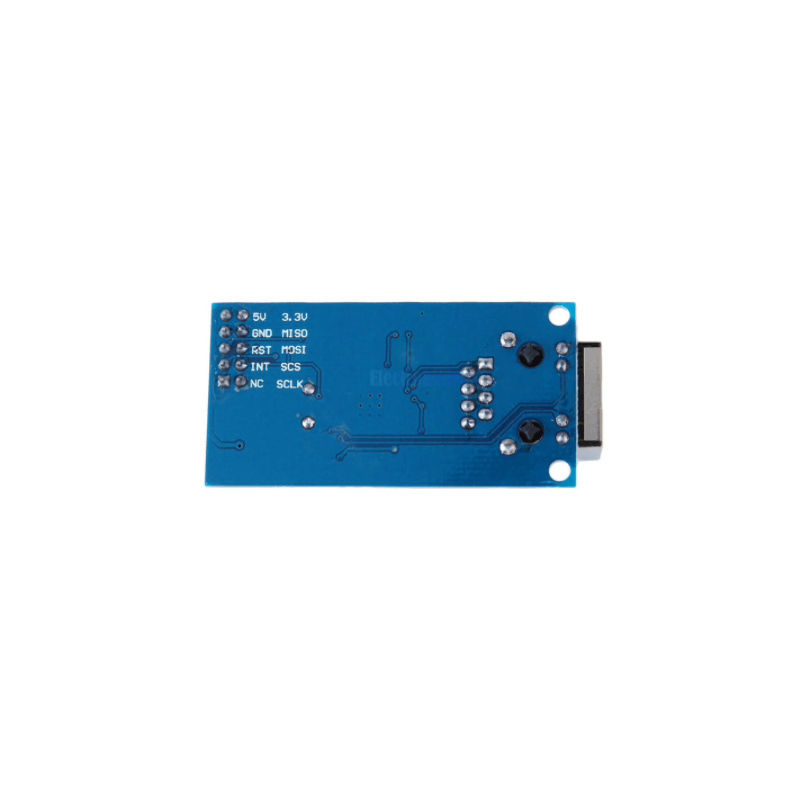

  • SPI interface with interrupt pin
  • 10/100 Mbit Ethernet
  • Built-in TCP/IP sockets for 8 channels
  • Supports TCP, UDP, ICMP, IPv4, DHCP
  • Internal 32 kB RAM for RX/TX buffers
  • Status LEDs: link, activity
  • Third-party software available for Arduino and Mbed OS
  • RadioShuttle support is planned (not integrated yet)
  • Dimensions:  28 x 55 x 18mm (W/L/H)
